Specification
3D Model
|
Product ID
|
L (mm)
Bolt Length |
D (mm)
Head Diameter |
H (mm)
Head Thickness |
k (mm)
Hexagon Across Flats |
t (mm)
Groove Depth |
Screwdriver Bit
Size |
| AA187 | 5 | 6 | 1.8 | 2 | 1 | H2 |
| AA085 | 6 | 6 | 1.8 | 2 | 1 | H2 |
| AA086 | 8 | 6 | 1.8 | 2 | 1 | H2 |
| AA188 | 10 | 6 | 1.8 | 2 | 1 | H2 |
| AA087 | 12 | 6 | 1.8 | 2 | 1 | H2 |
| AA189 | 14 | 6 | 1.8 | 2 | 1 | H2 |
| AA088 | 16 | 6 | 1.8 | 2 | 1 | H2 |
| AA190 | 18 | 6 | 1.8 | 2 | 1 | H2 |
| AA089 | 20 | 6 | 1.8 | 2 | 1 | H2 |

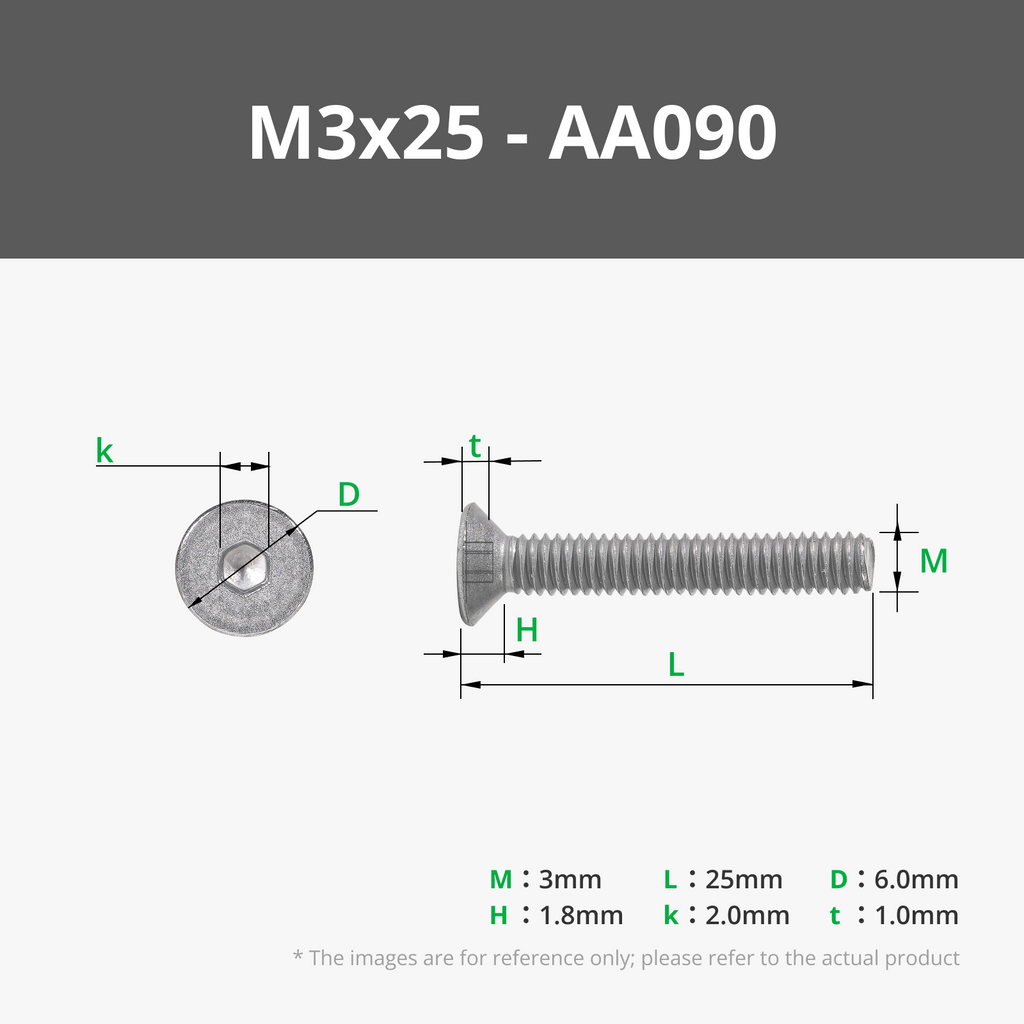

| AA090 | 25 | 6 | 1.8 | 2 | 1 | H2 |
| AA091 | 30 | 6 | 1.8 | 2 | 1 | H2 |
*Compliant with the requirements of GB/T 70.3-2008 standard [Equivalent standards: ISO 10642-2019, DIN EN ISO 10642-2013]
Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.
Basic Information
| Surface Treatment | No |
| Mounting Hole Shape | Hex socket |
| Screw Type | Complete thread |
| Material | Carbon steel |
| Thread Ridge Type | Metric coarse |
| Color | Silver |
Product Feature
-
Carbon Steel M2 Flat Head Cap Machine Screws (FHCS)
-
Nominal thread: M2~M3
-
Strength grade: 4.8
-
Full thread series
-
Type of thread: Metric coarse thread
