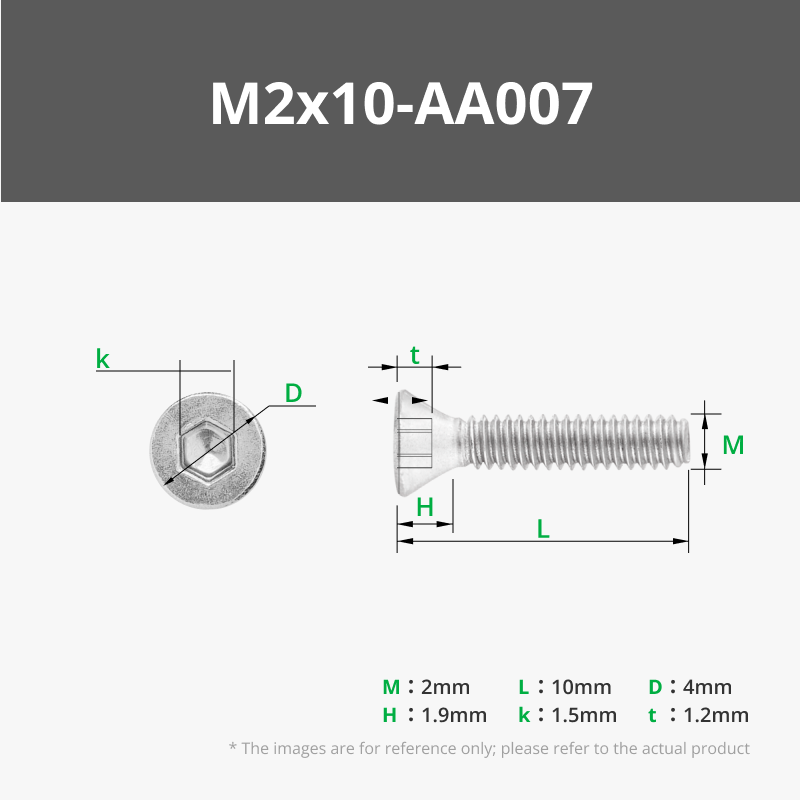

Product ID
|
M (mm)
Nominal Diameter |
P (mm)
Thread Pitch |
L (mm)
Bolt Length |
D (mm)
Head Diameter |
H (mm)
Head Thickness |
k (mm)
Hexagon Across Flats |
t (mm)
Groove Depth |
Screwdriver Bit Size |
| AA009 | 2 | 0.4 | 6 | 4 | 1.9 | 1.5 | 1.2 | H1.5 |
| AA011 | 2 | 0.4 | 8 | 4 | 1.9 | 1.5 | 1.2 | H1.5 |
| AA007 | 2 | 0.4 | 10 | 4 | 1.9 | 1.5 | 1.2 | H1.5 |
| AA015 | 2 | 0.4 | 12 | 4 | 1.9 | 1.5 | 1.2 | H1.5 |
| AA017 | 2 | 0.4 | 14 | 4 | 1.9 | 1.5 | 1.2 | H1.5 |
* Compliant with the requirements of GB/T 70.2-2015 standard [Equivalent standards: ISO 7380-1, DIN EN ISO(-1)]
Forgot the screw specs? Just print the Screw Gauge model from MakerWorld to help with sorting.
Basic Information
| Surface Treatment | No |
| Mounting Hole Shape | Hex socket |
| Screw Type | Complete thread |
| Material | Stainless steel |
| Thread Ridge Type | Metric coarse |
| Color | Silver |
Product Feature
-

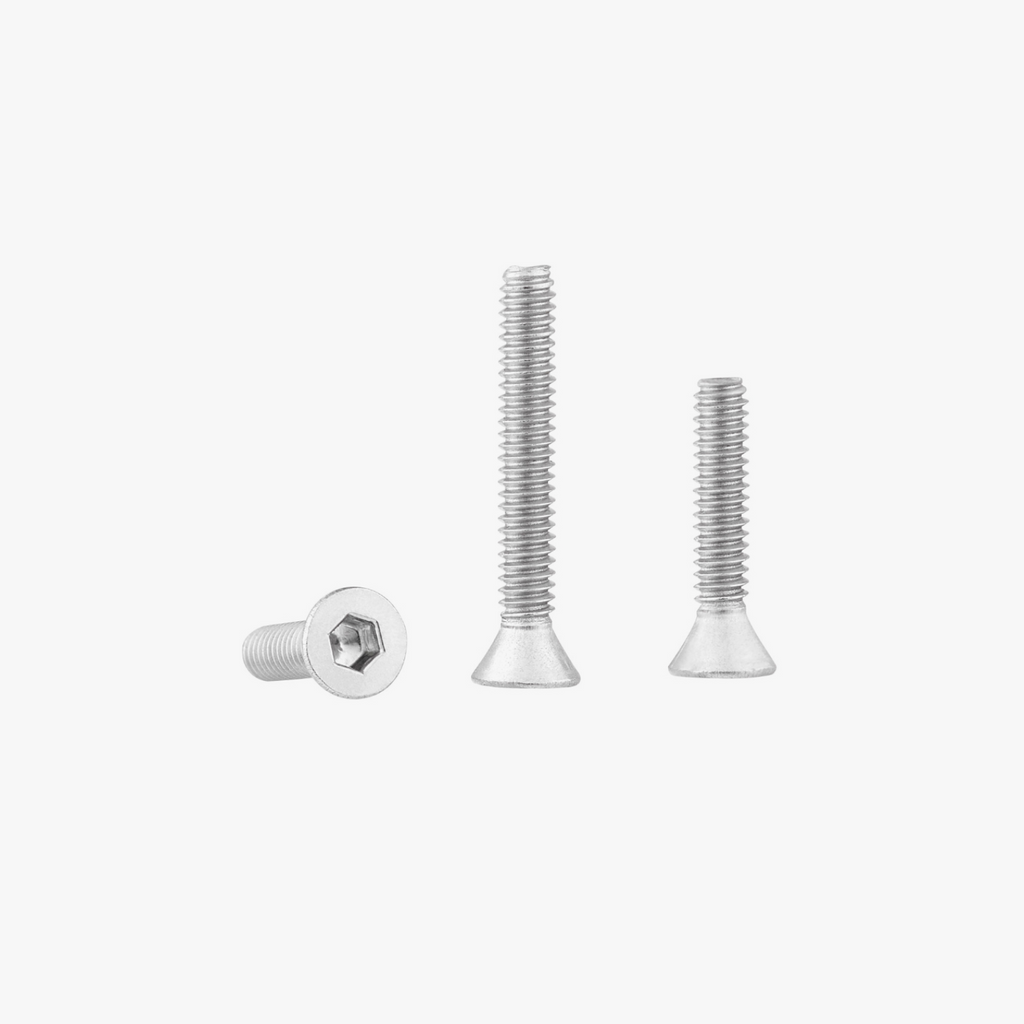

Stainless Steel Flat Head Cap Machine Screws (FHCS)
-
Nominal thread: M2.5~M5
-
Strength grade: 4.8
-
Type of thread: Metric coarse thread (currently all screws are metric coarse thread)
-
Full thread series (except M3*23)
