Specification
3D Model
|
Product ID
|
D (mm)
Outer Diameter |
d (mm)
Inner Diameter |
W(mm)
Thickness |

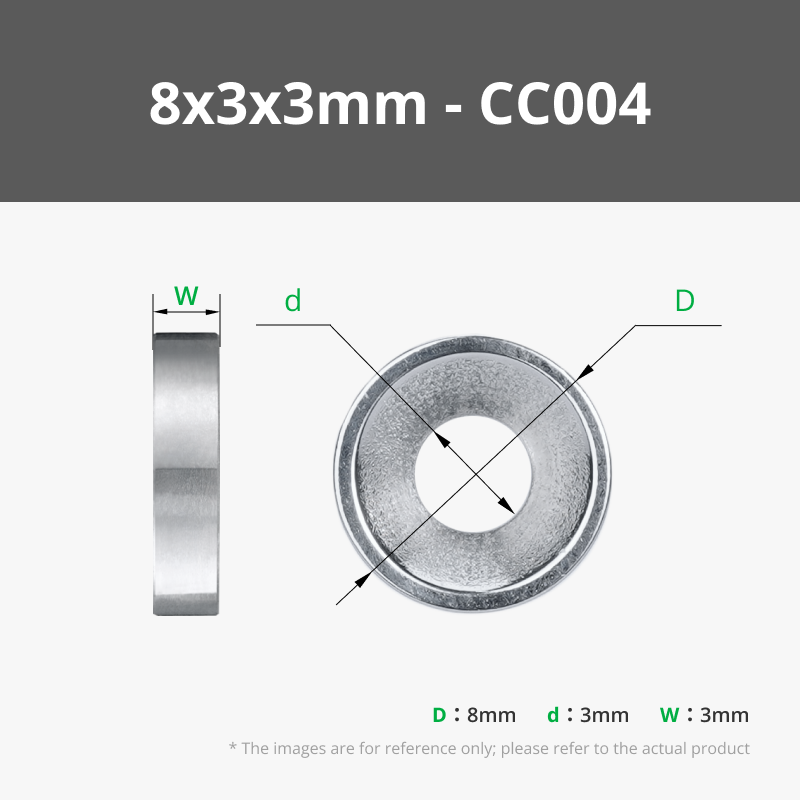

| CC004 | 8 | 3 | 3 |
| CC005 | 10 | 3 | 3 |
| CC002 | 10 | 4 | 3 |
| CC001 | 12 | 3 | 3 |

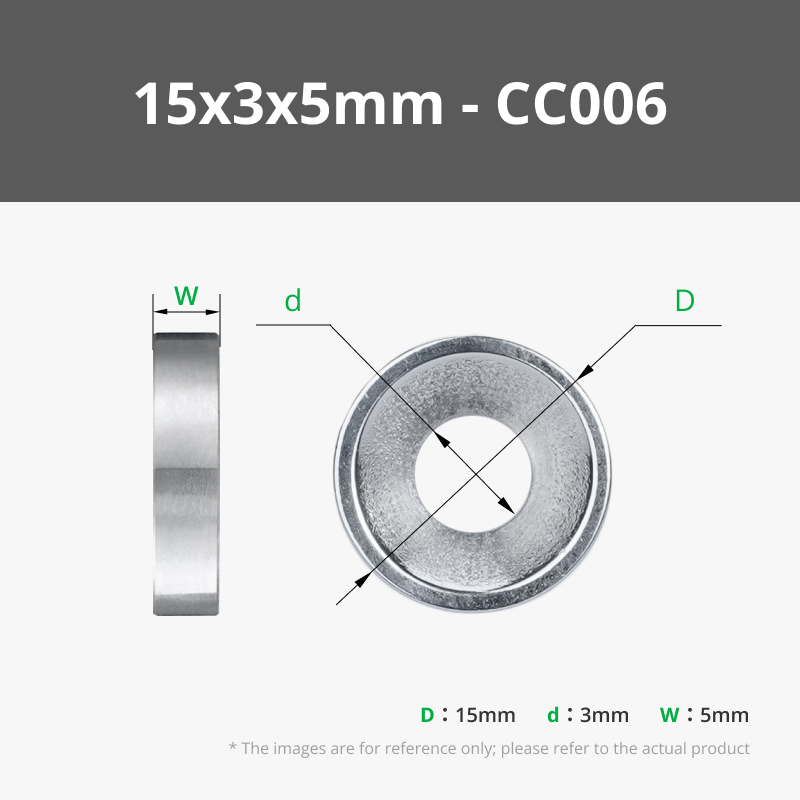

| CC006 | 15 | 3 | 5 |
| CC007 | 20 | 4 | 5 |
| CC008 | 25 | 5 | 5 |
Basic Information
| Mount Type | Magnetic |
| Direction of Magnetization | Through thickness |
| Magnet Grade | N35 |
| Max Temperature | 80℃ |
| Material | Neodymium magnet |
| Surface Treatment | Nickel plating |
| Shape | Countersunk |
| Color | Silver |
Product Feature
High-Performance Magnetic Strength | Corrosion-Resistant Coating | The unique countersunk hole design allows for easy mounting with screws
